APOLLO

The Orpheus Advantage:
25 years plus Design Experience
Delivering "The Emotion Quotient"

The Apollo V1 features:

  • Custom designed paper cone in a cast alloy chassis
  • Silk dome tweeter
  • Crossovers utilising air core inductors
  • Metallised polypropylene capacitors
  • 2oz copper foil custom made PCB
  • Cabinets using furniture grade timber veneer
Apollo Specifications
Design 2 way Front Ported
Frequency Range -3dB at 35Hz and 22kHz
-6dB at 30Hz and 25kHz
Frequency Response 39Hz to 20kHz ± 2dB
Sensitivity 90dB at 1 meter, 2.83 V input on tweeter axis
Power Handling 120 Watts Music Programme
Impedance 4 Ohms nominal, minimum phase
Crossover 15 Element, audiophile grade components
2 oz. copper foil PCB for maximum connectivity
Drive Units Custom designed 7" paper cone bass driver
30mm silk dome tweeter with critically damped rear chamber
Cabinet 25mm front panel with 18mm walls
Strategically braced with resonance damping well
Rear timber veneer with epoxy lacquer
Dimensions 220mm(W) x 325mm(D) x 980mm(H)
Weight 28kg (each speaker)
Finish Available Black Oak, Mahogany

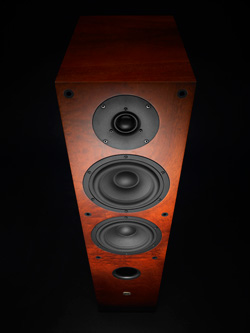

The Orpheus Apollo V1

How does it sound?

The new Orpheus Apollo V1 is all about "The Emotion Quotient". The most vital ingredient of the Orpheus design recipe is technically difficult to quantify. It is that intangible quality that seems to draw you into the music. This is the loudspeaker designer's ability to engage the listener to the musical event. So you don't just hear the music, you respond to it emotionally. This is profoundly enjoyable. The Orpheus design philosophy is about how music can make us all feel. The proof is in the listening! What Does it all Mean? The specifications outlined above mean that the Apollo offer exceptional value. They compete successfully in terms of features and performance with significantly more expensive speakers from other manufacturers. Put simply it means you get a lot of musical pleasure for your money.
